High-speed, precision grinders for processing of medium-hard, impact-resistant, and friable materials.
Virtus Equipment’s PVC Pulverizer Granulators are industrial pulverizing machines designed to produce fine plastic powder from regrind materials. These granulators use high-speed centrifugal grinding to convert plastics such as PVC and other medium-hard resins into consistent powder form. They deliver high throughput with low energy usage, making them ideal for recycling centers and manufacturing facilities that need finely milled plastic powders for reuse or secondary processing.
Shredder Process
These pulverizer granulators are capable of processing a variety of plastic materials, including:
The machines produce uniform powder suitable for extrusion, compounding, or rotomolding feedstock.
Virtus Equipment’s PVC Pulverizer Granulators offer efficient, high-quality pulverization with a focus on energy savings, throughput, and output control. Their adjustable cutting gap, choice of grinding discs or segments, and temperature control systems make them flexible and reliable solutions for plants handling medium-hard plastics and requiring consistent powder production for reuse, compounding, or molding operations.
Virtus Equipment supplies PVC Pulverizer Granulators throughout the United States, backed by technical consultation, system configuration support, installation assistance, and aftermarket service. Our nationwide support network ensures responsive maintenance, optimized performance, and long-term operational reliability for plastics recycling, processing, and manufacturing facilities across the country.

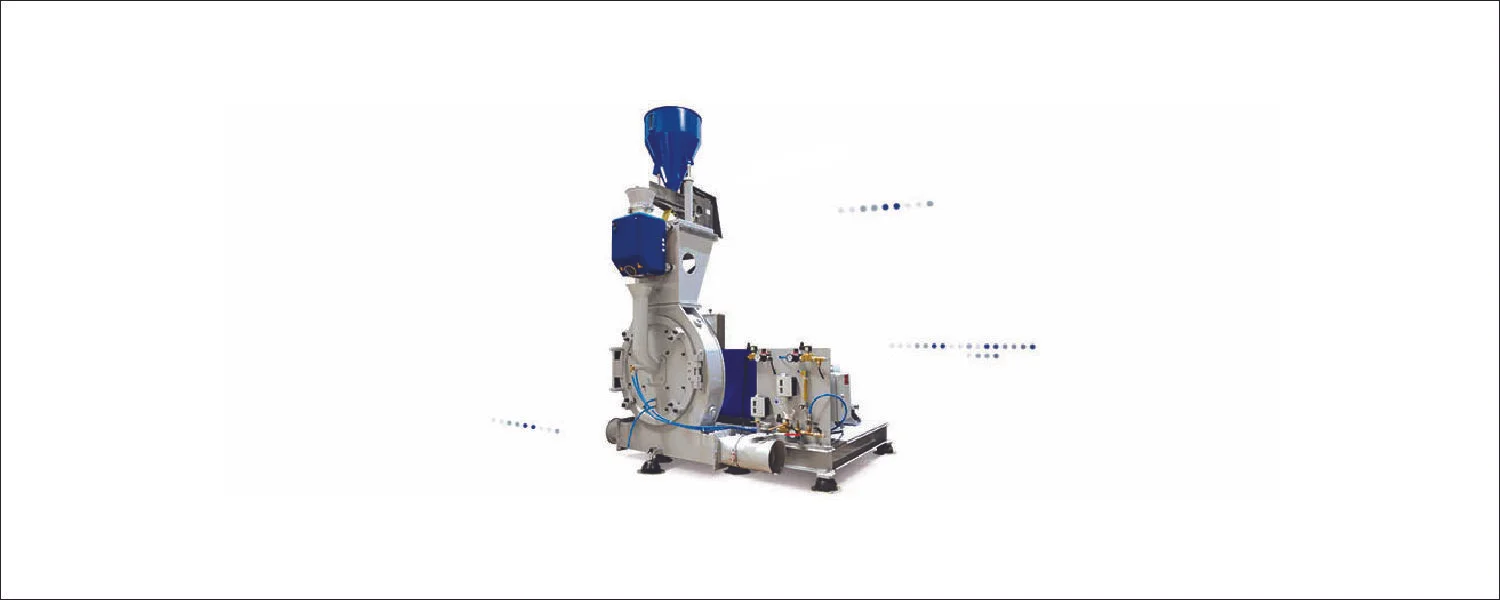

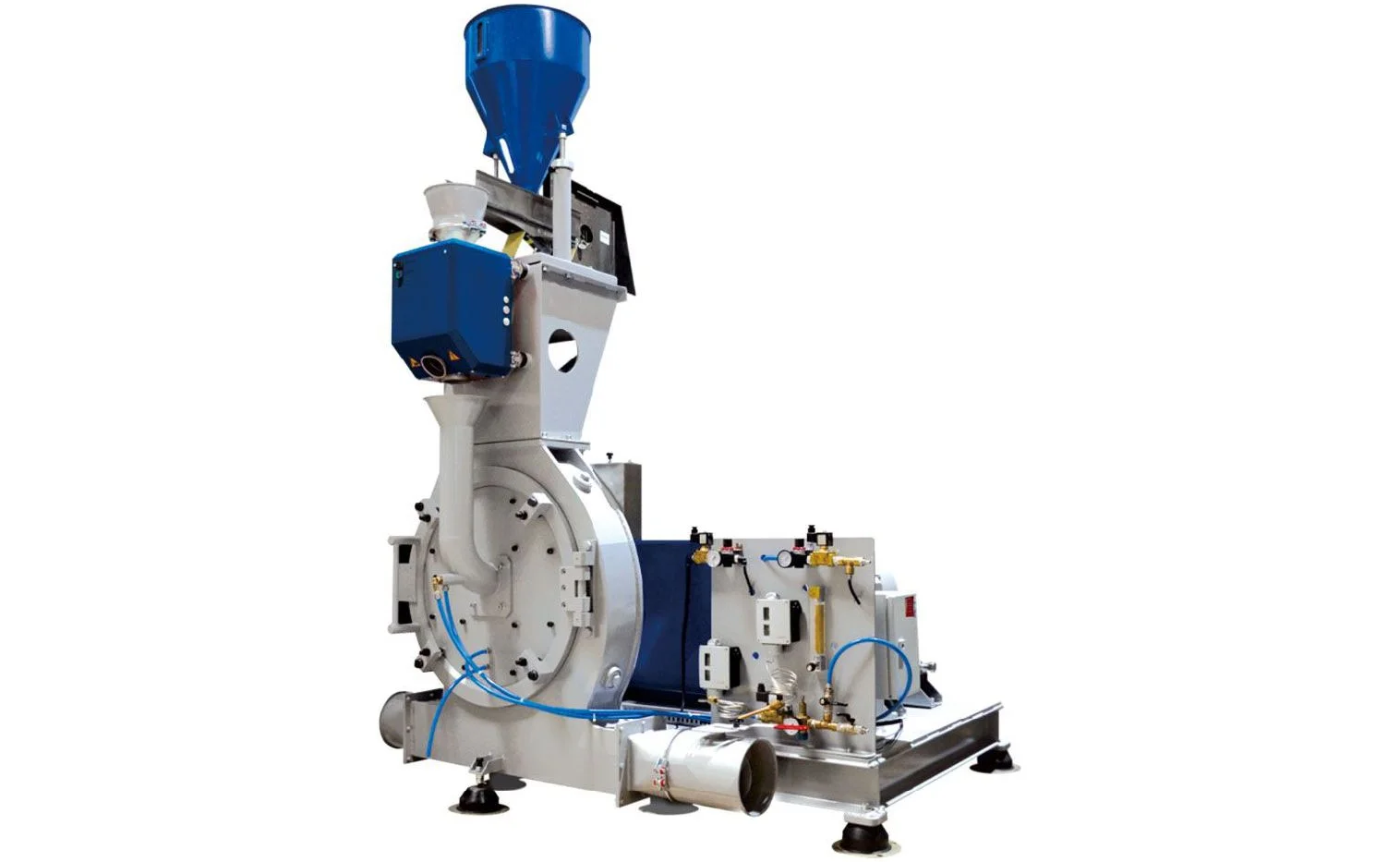

Virtus Equipment's PM-series disc pulverizers are available in disc diameters from 300 mm to 800 mm. These plastics pulverizers are high speed, precision grinders for processing medium-hard, impact resistant and friable materials. The material to be pulverized is introduced through the center of a vertically fixed grinding disc which is mounted concentrically with an identical high-speed rotating disc. Centrifugal force carries the material through the grinding area and the resulting powder is collected with a blower and cyclone system. Depending on the application, the machines can be equipped with one-piece grinding discs or grinding segments.
Virtus PVC Pulverizer Granulators are commonly used in:
These machines support processes where fine, uniform plastic powder is needed for downstream applications.

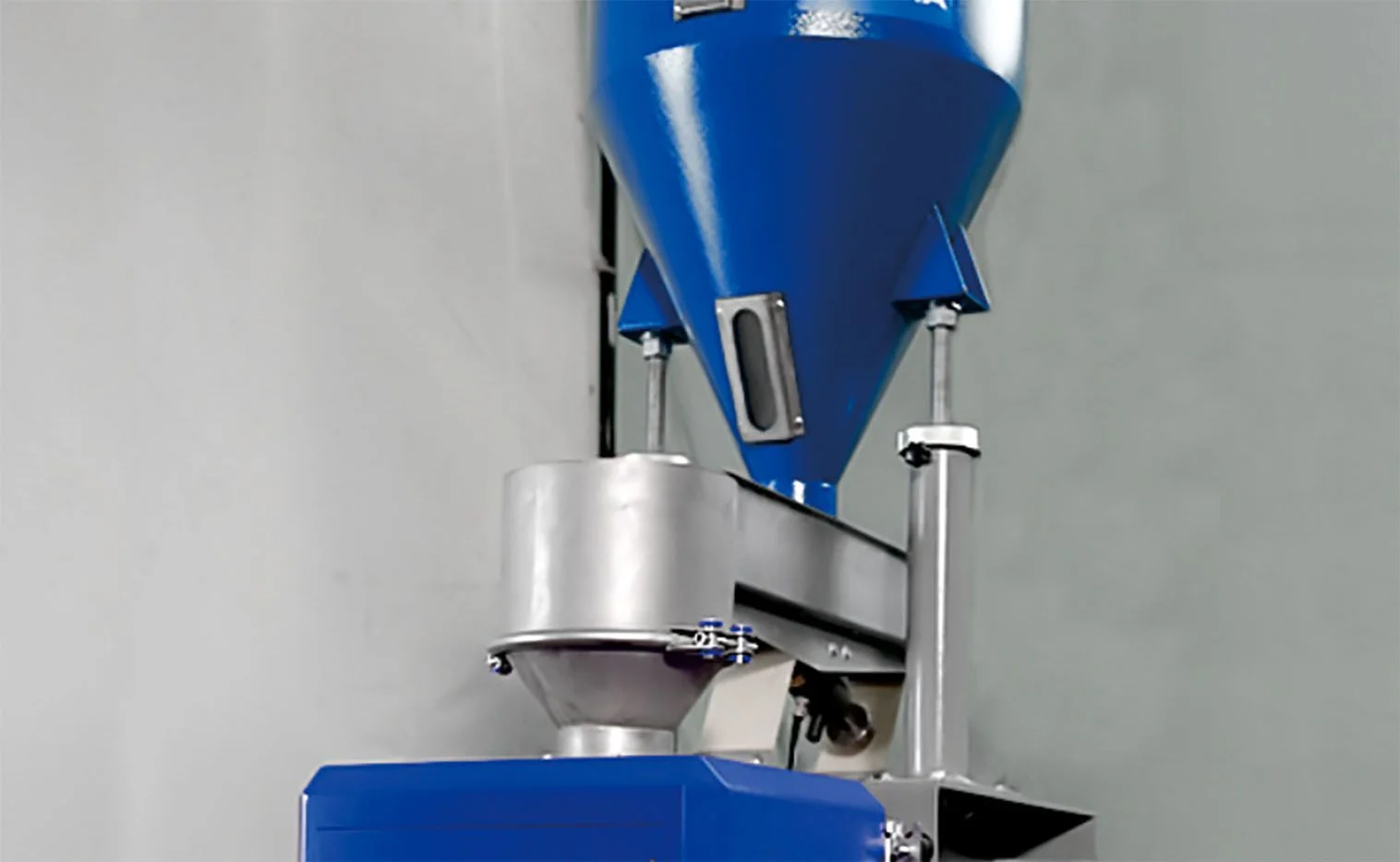

Dosing System

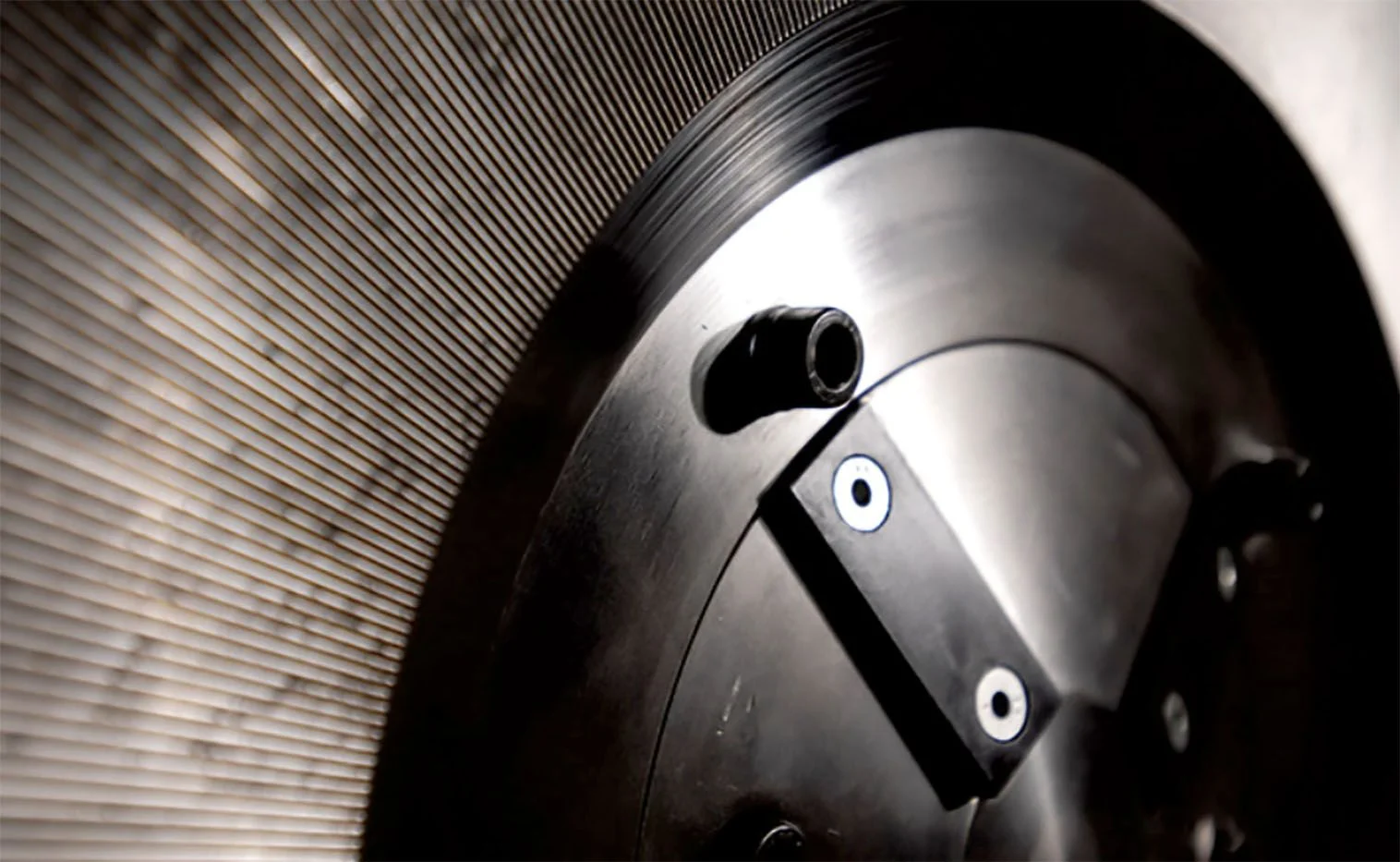

Tool Steel Grinding Disc

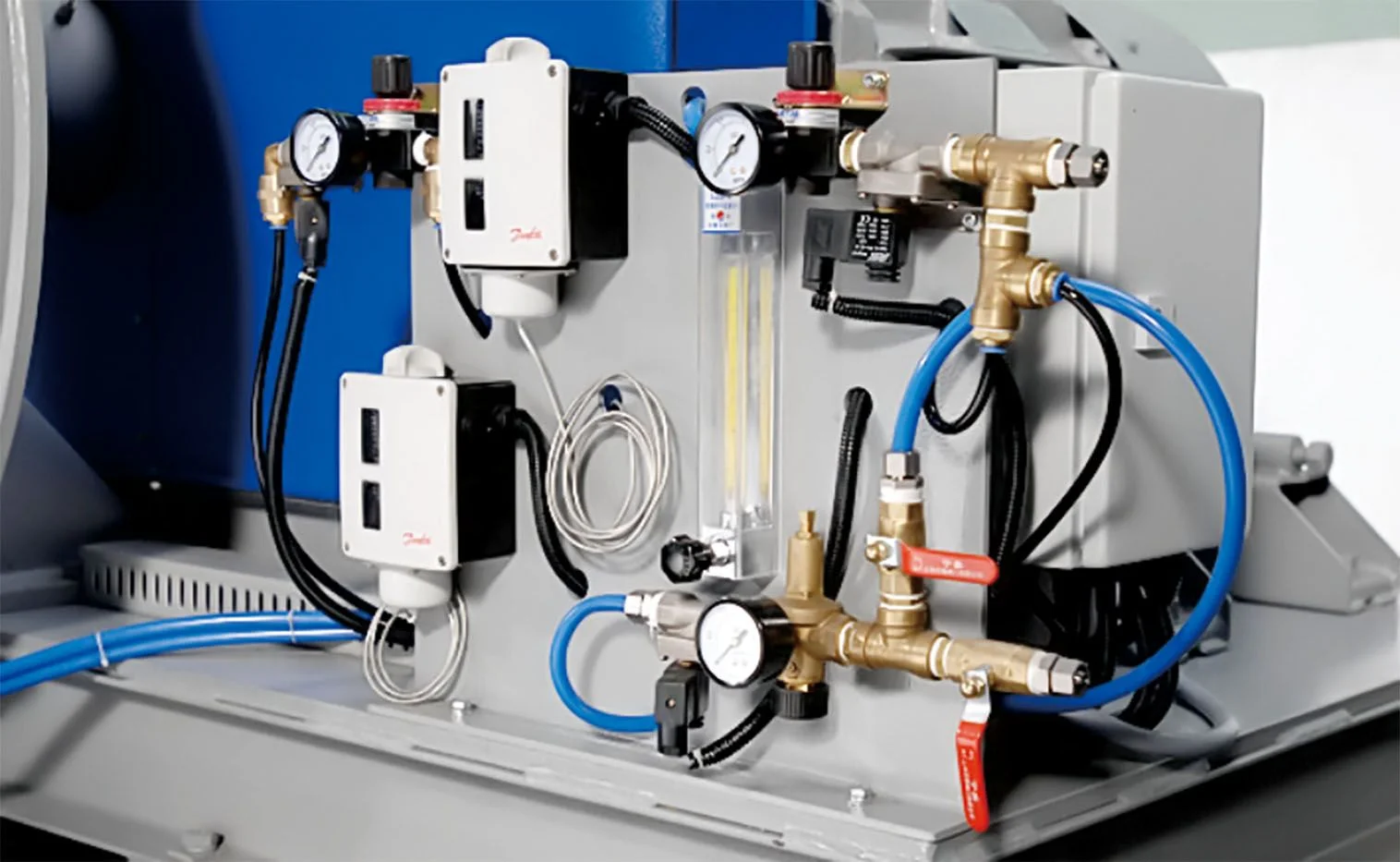

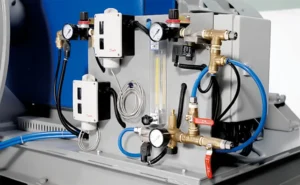

Automated Cooling System
| PM Series | PM 300 | PM 500 | PM 800 | |
|---|---|---|---|---|
| Specifications | ||||
| Material Throughput | lbs/hr | 0 - 800 | 0 - 1200 | 0 - 1800 |
| Discs Diameter | mm | 300 | 500 | 800 |
| Drive Capacity | kW | 22 | 55 | 90 |
| Weight (approx.) | kg | 900 | 1800 | 2500 |
| Throughput (approx.) | kg/h | 50-500 | 100-1000 | 200-1500 |
| Dimensions | ||||
| A | mm | 1365 | 1800 | 2085 |
| B | mm | 640 | 640 | 640 |
| C | mm | 1100 | 1470 | 1800 |
| D | mm | 435 | 435 | 435 |
| E | mm | 1515 | 1840 | 1680 |
Plastics Pulverizer Granulators for Fine Powder Grinding are high-speed precision machines designed to process medium-hard and impact-resistant materials into fine powder. In Virtus Equipment’s PM-Series, the material is fed between two grinding discs — one stationary and one rotating — where centrifugal force ensures efficient pulverization. The resulting powder is then collected via a blower and cyclone system.
Virtus Equipment’s PVC Pulverizer Granulators are ideal for processing PVC pipes, profiles, PE, and other thermoplastics. They can handle both post-industrial and post-consumer waste, turning rigid plastic materials into uniform, high-quality powder for reuse in extrusion or rotomolding applications.
Yes. Virtus Equipment’s pulverizers are designed to work seamlessly with shredders and granulators to form a complete recycling system. This integration allows efficient material size reduction — from shredding to granulation to fine powder pulverization — creating a balanced and cost-effective recycling process.
Industries such as plastic extrusion, rotomolding, PVC pipe manufacturing, and recycling operations greatly benefit from Virtus Equipment’s pulverizers. These systems are ideal for reclaiming production waste, producing rotomolding powders, and preparing material for high-precision plastic extrusion processes.
You can request a free quote by visiting our Contact Us page and submitting your equipment requirements, or by calling us directly at (239) 219-1800. Our sales team will work with you to select the right pulverizer model and customization options for your application.
