Virtus Equipment’s High-Capacity Industrial Shredders are heavy-duty, single-shaft shredders engineered for large and bulky materials that require primary size reduction. Designed with a deep cutting chamber and powerful feed system, these shredders provide higher throughput and robust performance for industrial recycling and processing operations handling big volume wastes.
Shredder Process
These shredders are designed to process a wide range of large, heavy, and bulky materials, including:
Virtus Equipment’s High-Capacity Industrial Shredders deliver powerful shredding capabilities for large and bulky materials that standard equipment can struggle with. Their deep cutting chamber, hydraulic feed, and rugged design ensure consistent throughput, reliable performance, and long service life — making them a strong choice for industrial recyclers focused on efficiency, uptime, and material handling capacity.
Virtus Equipment supplies High-Capacity Industrial Shredders throughout the United States, offering technical consultation, configuration support, installation assistance, and aftermarket service tailored to large-scale recycling operations. With local service options and responsive support, customers nationwide benefit from optimized performance, quick maintenance response, and long-term operational reliability.

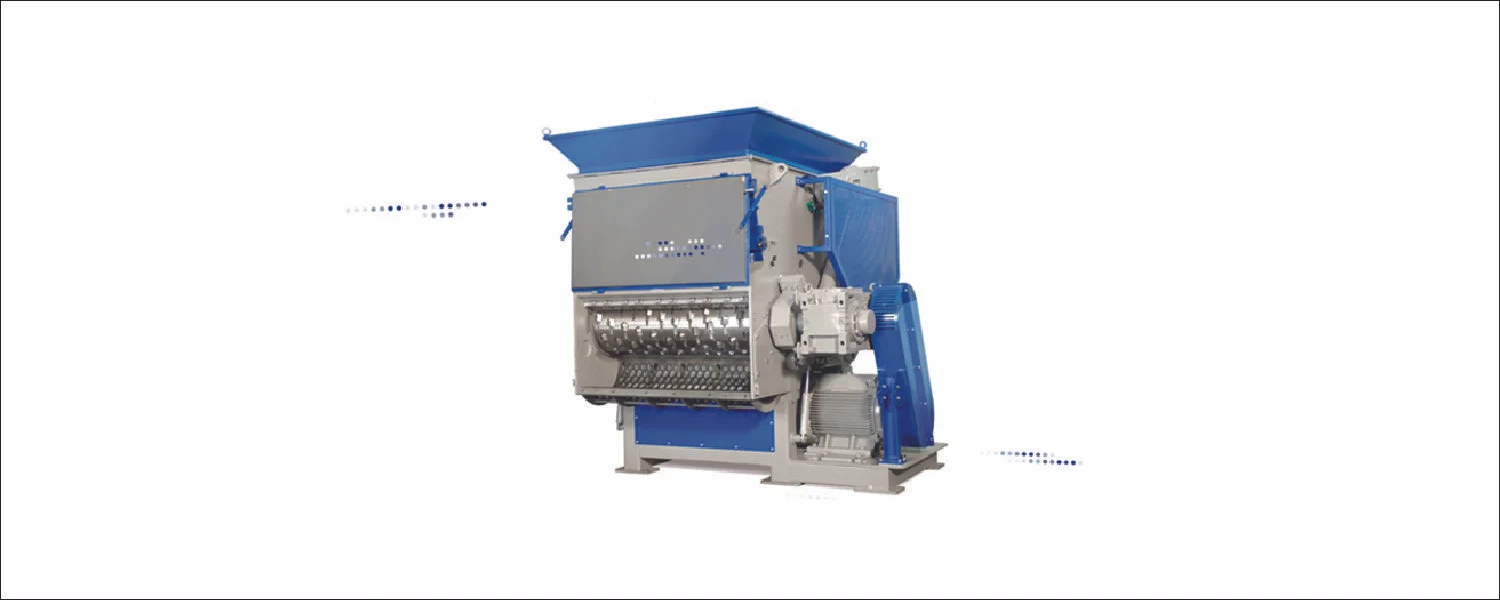

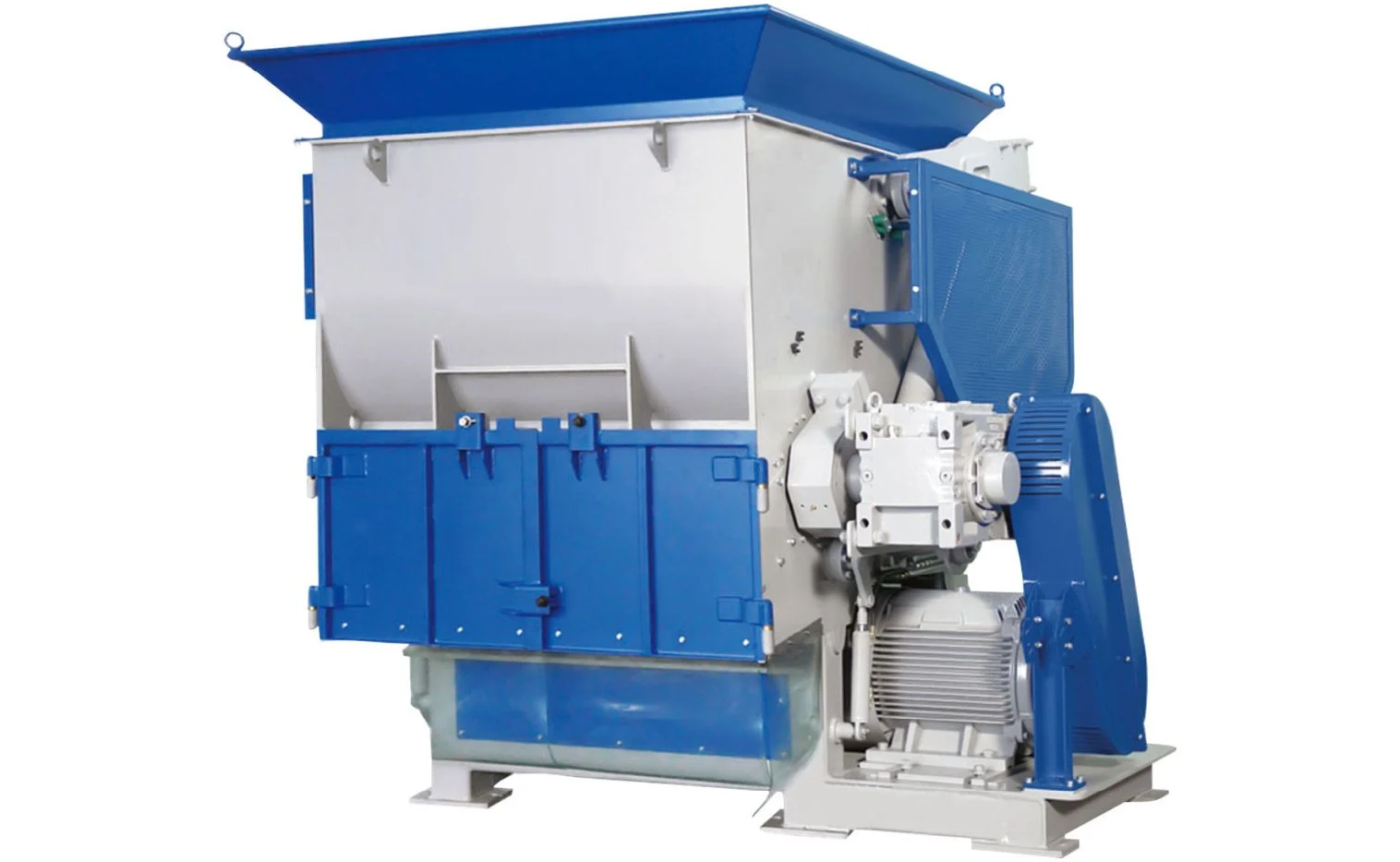

The V-series industrial shredders are single-shaft shredders with a large internal volume. The redesigned hydraulic pusher system creates approximately 35% more space in the cutting chamber while increasing the power and ram speed. The shredder is equipped with a 457 mm diameter Virtus Equipment E-type rotor in widths from 1200 mm to 2000 mm. As on the G-Series shredders, the rotor is driven by an oversized gearbox. The completely enclosed welded steel housing increases the stability and avoids material spillage. The V-Series single shaft shredders incorporates all the traditional advantages of the Virtus knife and knife holder design as well as standard features such as outboard bearings, hydraulic screen cradle, easy maintainability, and advanced controls.
High-Capacity Industrial Shredders from Virtus Equipment are commonly used in:
Concave Rotor Knife

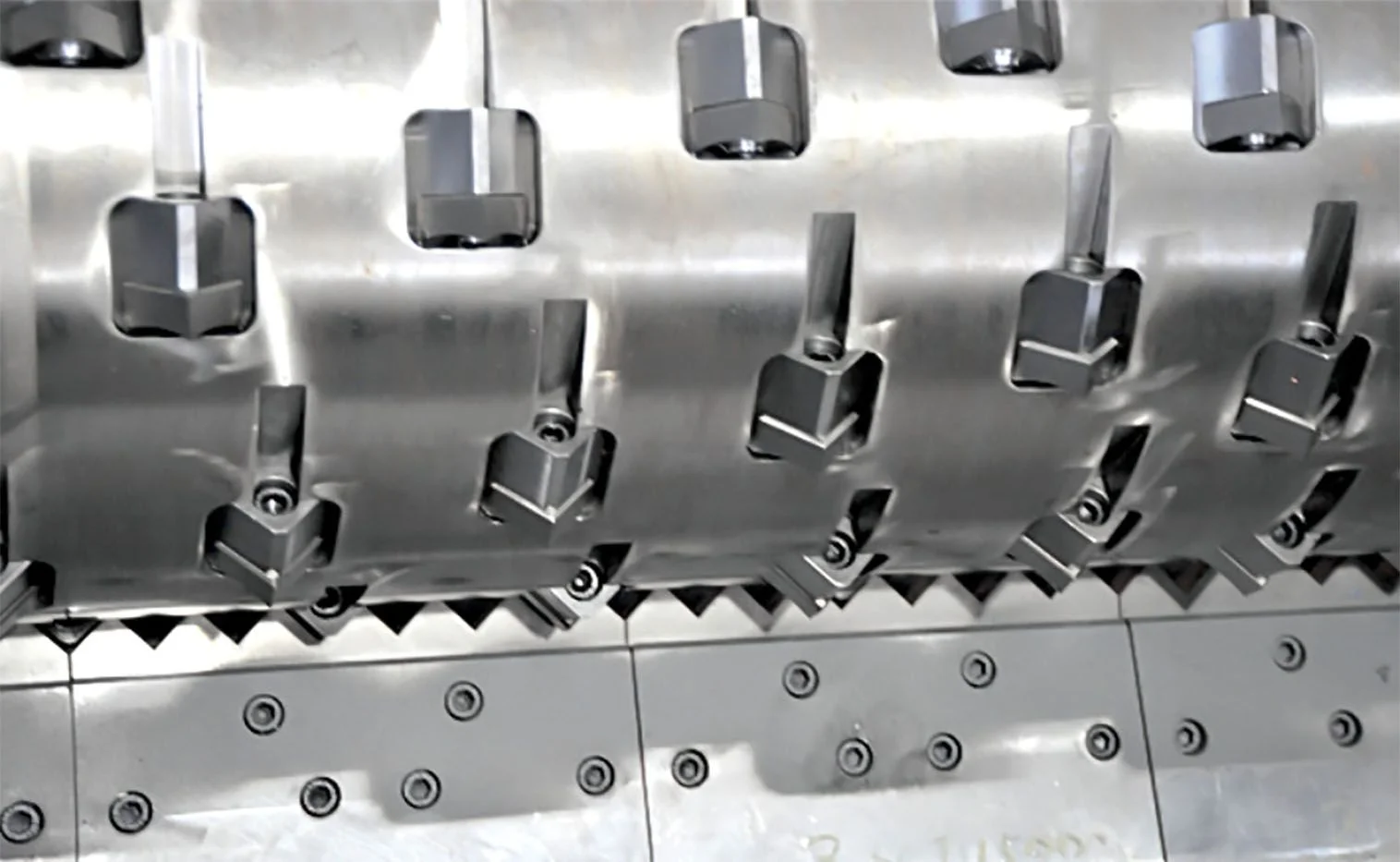

E-type Rotor

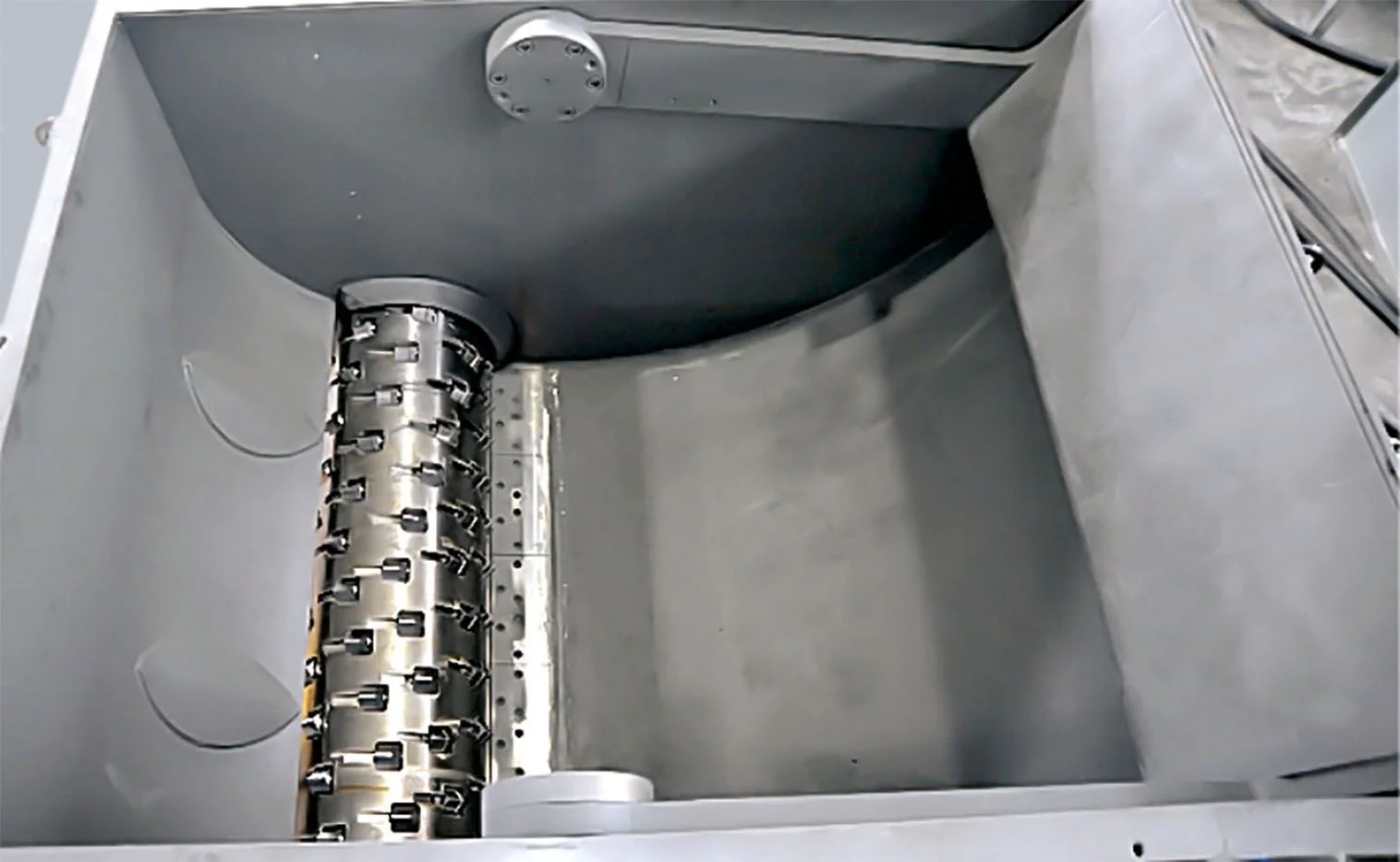

Internal Ram Design
| V Series | V45-120 | V45-150 | V45-200 | |
|---|---|---|---|---|
| Specifications | ||||
| Material Throughput | lbs/hr | 0 - 2200 | 0 - 3000 | 0 - 1600 |
| Rotor Diameter | mm | 457 | 457 | 457 |
| Rotor Width | mm | 1130 | 1410 | 1970 |
| Rotor Speed | rpm | 74 | 74 | 74 |
| Drive Capacity | kW | 55 | 75 | 2 x 55 |
| Rotor Knives | pcs | 54/81 | 68/102 | 96/144 |
| Stator Knives | rows | 1 | 1 | 1 |
| Ram Feeder Drive | kW | 5.5 | 5.5 | 5.5 |
| Screen size | mm | >40 | >40 | >40 |
| Cutting Chamber Volume | m3 | 2.15 | 2.70 | 3.75 |
| Effective Working Area | mm x mm | 1400 x 1010 | 1400 x 1290 | 1400 x 1850 |
| Weight (approx.) | kg | 5000 | 6400 | 8800 |
| Dimensions | ||||
| A | mm | 2070 | 2070 | 2070 |
| B | mm | 725 | 725 | 725 |
| C | mm | 2600 | 2600 | 2600 |
| D | mm | 1880 | 1880 | 1880 |
| E | mm | 1140 | 1420 | 1980 |
| F | mm | 2320 | 2635 | 3710 |
A High-Capacity Industrial Shredder is designed for processing large, bulky, or voluminous materials such as IBCs, plastic pallets, wheelie bins, and industrial drums. It is ideal for recycling operations that demand high throughput, efficient size reduction, and consistent performance.
This high-capacity shredder can handle a wide range of materials including plastics, wood, rubber, and bulky waste. With optional ware packages, it can also process abrasive or filled materials commonly used in industrial recycling.
The V-Series stands out with a 35% larger internal cutting chamber compared to standard models. Its internal hydraulic pusher, variable-speed operation, and compact design ensure faster material feeding, improved efficiency, and a smaller installation footprint.
The redesigned internal hydraulic pusher (ram) provides faster and more powerful feeding action, reducing idle time and increasing throughput. Its enclosed design prevents material spillage, maintaining a clean and safe work environment.
You can easily request a quote by submitting form through our website’s product page or by contacting us directly via phone or email. Our team will provide tailored performance data, configuration options, and pricing aligned with your recycling application.
