Virtus Equipment’s Heavy-Duty Industrial Shredders are engineered for high-capacity, rugged size reduction of very large, thick, and heavy materials. Built with a robust gear drive and advanced hydraulic feed, these single-shaft shredders deliver powerful performance for industrial recycling, waste reduction, and primary size-reduction applications where conventional shredders struggle.
These industrial shredders are designed to process a wide range of difficult and bulky materials, including:
Virtus Equipment’s Heavy-Duty Industrial Shredders combine powerful hydraulic feeding, high-torque gear drive, and rugged single-shaft design to deliver reliable performance for tough materials and high-volume operations. Their ability to process large and heavy parts efficiently makes them a strong choice for recyclers and industrial waste processors needing durable, high-capacity size reduction.
Virtus Equipment supplies Heavy-Duty Industrial Shredders across the United States, offering technical consultation, configuration support, installation assistance, and aftermarket services. Our nationwide support network ensures fast response times, reliable machine performance, and long-term operational uptime for recycling facilities and industrial processing operations nationwide.

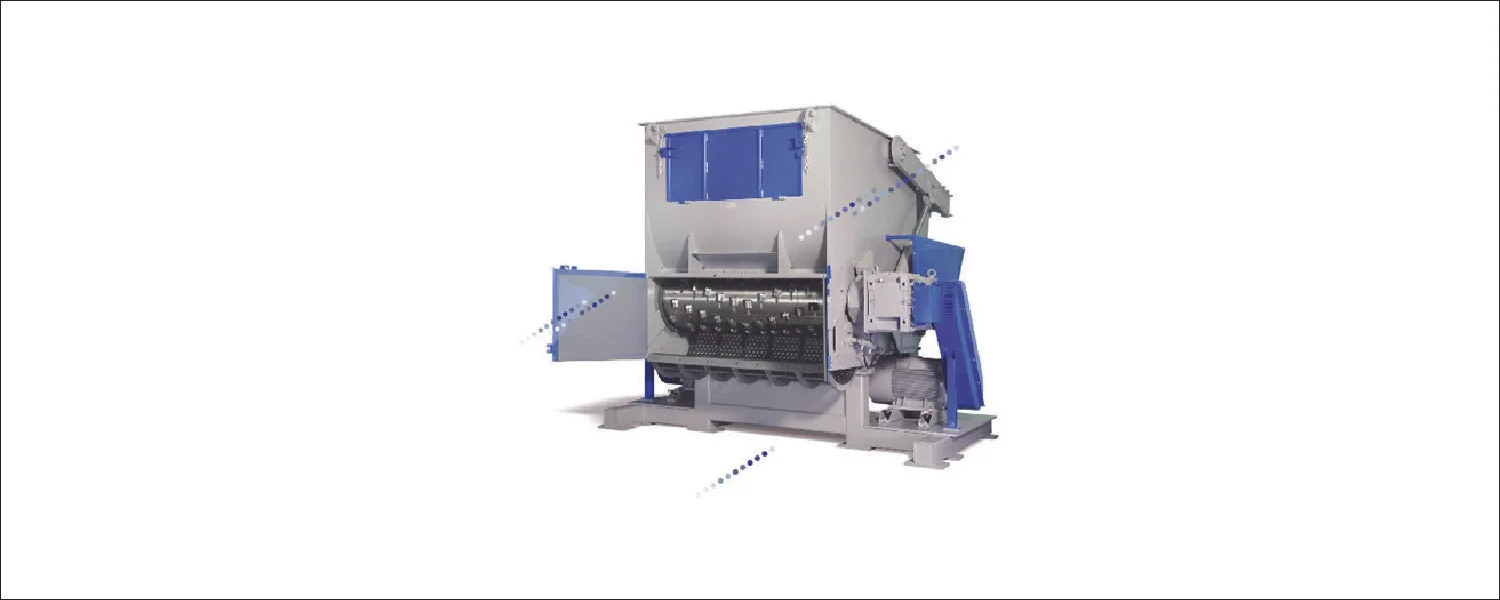

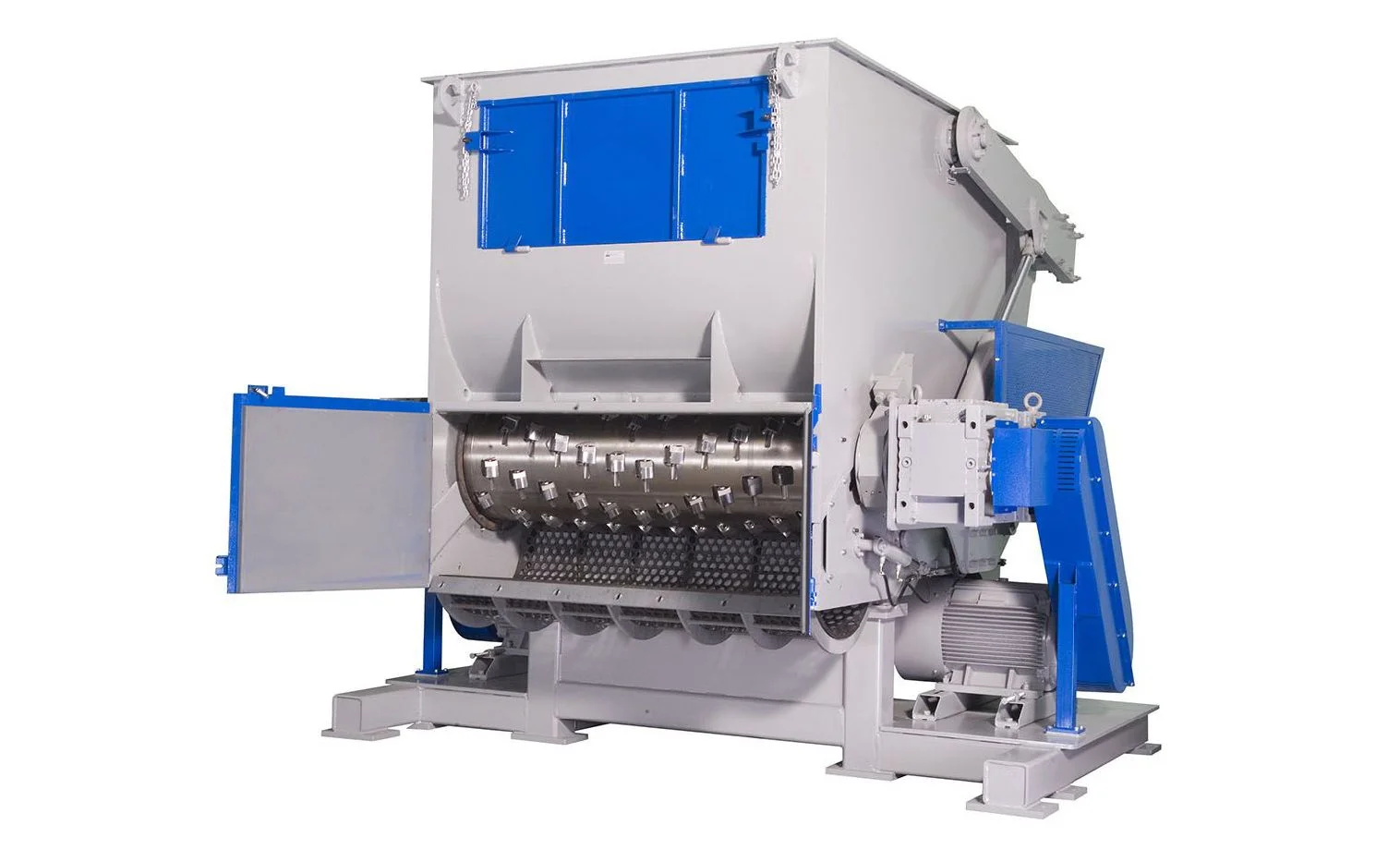

The X-Series Heavy-duty Industrial Shredders are single shaft shredders with a powerful two-speed swing ram design eliminating the risk of blocking and wearing out of the internal guide rails. It is very versatile, can shred all kinds of input materials, and is well-suited for different industries. The single shaft shredders are equipped with a 750 mm diameter rotor in widths from 1500 mm to 3000 mm and is driven by two oversized gearboxes. Its low speed of 45 rpm guarantees a high torque and smooth operation. The hydraulic power pack is well integrated into the shredder housing to save space and protect it from damage, but still easy to access or remove for maintenance. The proven E-type rotor, knife holder and knife designs are taken to new dimensions to conquer the most demanding applications and challenges. The heavy duty industrial shredders can be tailored to various applications with advanced controls and hydraulics, hard facing, and other wear options.
The X-Series Heavy Duty Industrial Shredders have been designed for the most demanding and high throughput applications in plastics recycling industries. The input materials can be all types of plastics, wood, paper, cardboard, e-waste, post-consumer waste, rubber, etc. in various shapes and sizes. Typical input materials are fridges, purges, tires, pallets, bales, drums, barrels, pipes, and film. The output material size is determined by the installed screen size and, except in some RDF (refuse-derived fuels) and wood applications, the output material may need to be processed further to achieve the desired final size. For the recycling of complete truck and tractor tires, the X T model is configured with special wear protection and knives.
Virtus Heavy-Duty Industrial Shredders are commonly used in:

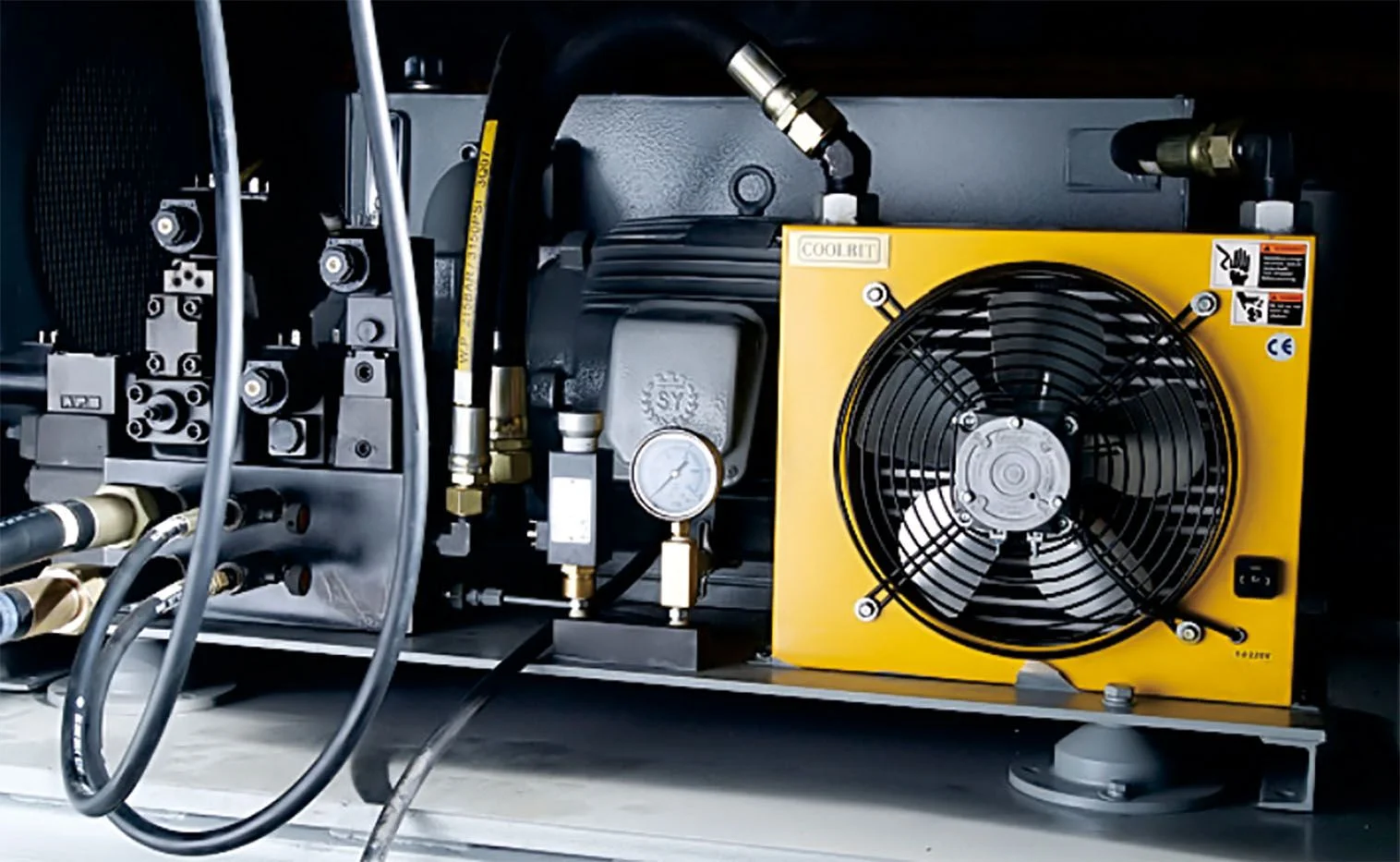

High-powered, Twin-speed Hydraulic System

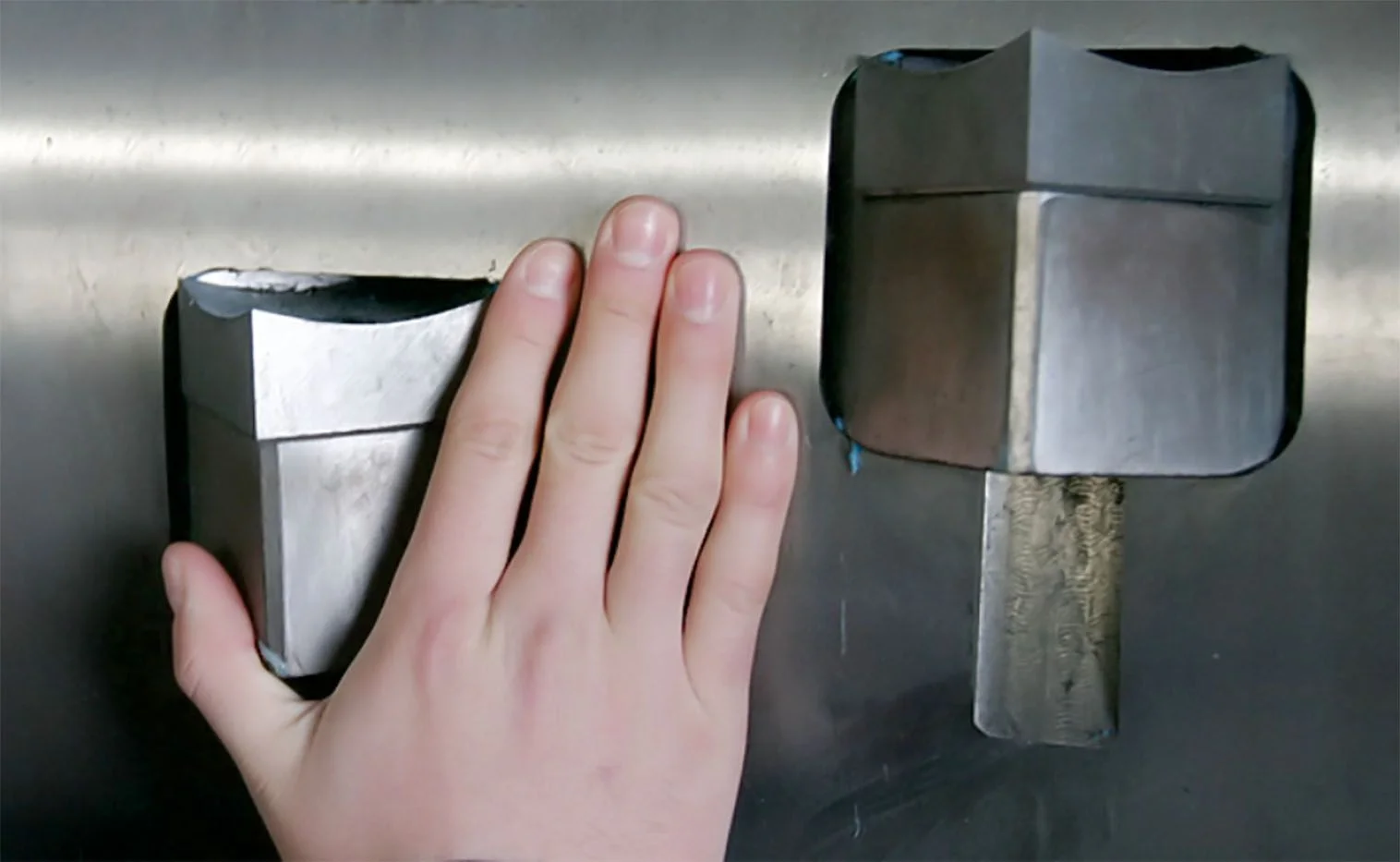

Rotor Knife

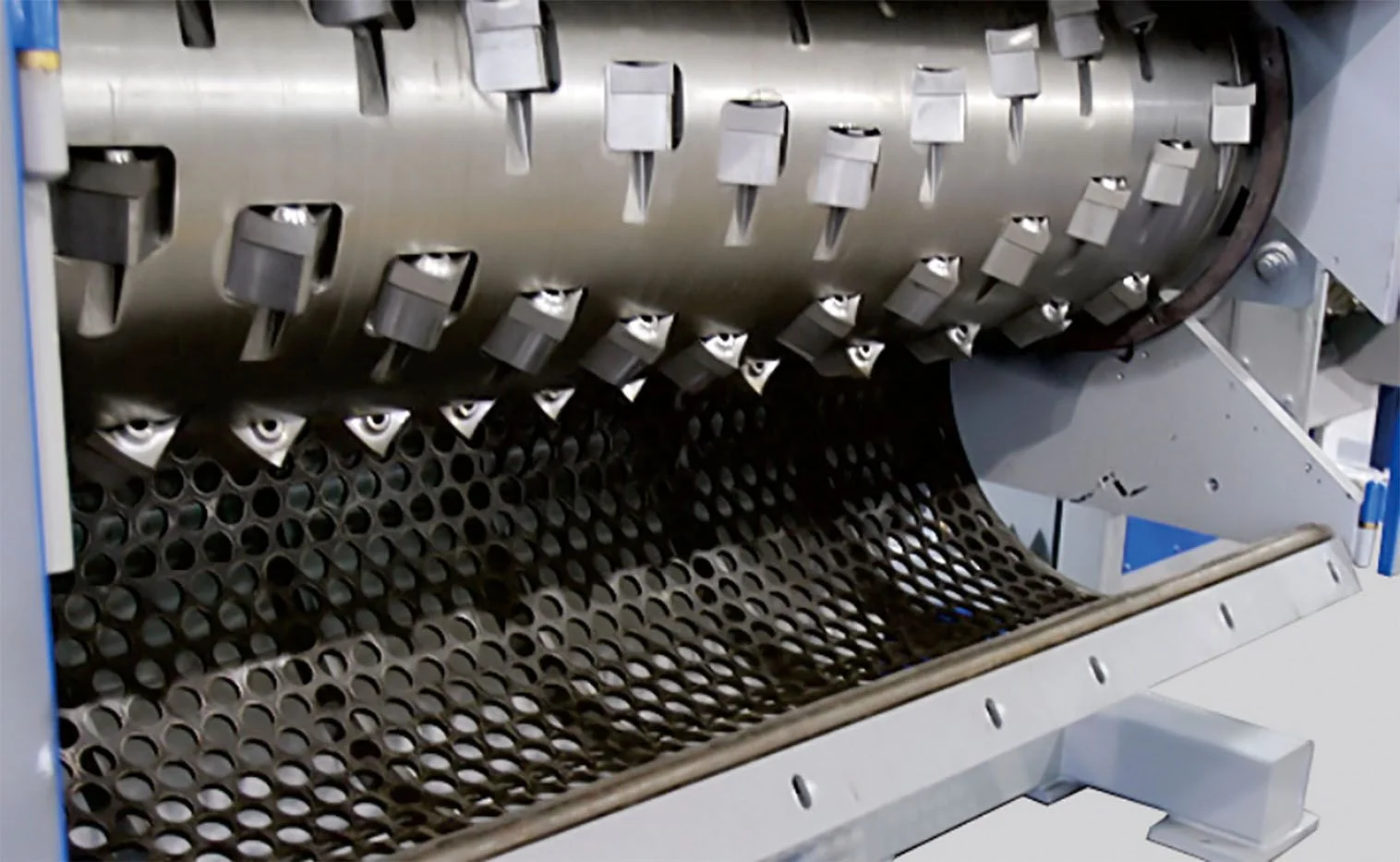

Hydraulic Rotor Screen Cradle
| X Series | X 1500 | X 2000 | X 3000 | |
|---|---|---|---|---|
| Specifications | ||||
| Material Throughput | lbs/hr | 0 - 7500 | 0 - 10000 | 0 - 15000 |
| Rotor Diameter | mm | 750 | 750 | 750 |
| Rotor Width | mm | 1500 | 2000 | 3000 |
| Rotor Speed | rpm | 46 | 46 | 46 |
| Drive Capacity | kW | 2 x 75 | 2 x 90 | 2 x 110 |
| Rotor Knives | pcs | 76 | 96 | 136 |
| Stator Knives | rows | 1 | 1 | 1 |
| Ram Feeder Drive | kW | 11 | 11 | 11 |
| Screen size | mm | >60 | >60 | >60 |
| Cutting Chamber Volume | m3 | 7.75 | 9.67 | 13.5 |
| Effective Working Area | mm x mm | 1500 x 1440 | 1500 x 1840 | 1500 x 2640 |
| Weight (approx.) | kg | 17000 | 20200 | 27000 |
| Dimensions | ||||
| A | mm | 3580 | 3580 | 3580 |
| B | mm | 935 | 935 | 1015 |
| C | mm | 3420 | 3420 | 3670 |
| D | mm | 2540 | 2540 | 2540 |
| E | mm | 1620 | 2020 | 2820 |
| F | mm | 3560 | 4100 | 5070 |
Heavy-Duty Industrial Shredders are designed for processing large, dense, and heavy materials such as plastics, wood, paper, e-waste, tires, and post-consumer waste. They efficiently reduce bulky waste into manageable pieces for recycling and reprocessing.
The Virtus X-Series features a low-speed, high-torque gear drive and a powerful two-speed swing-type hydraulic ram. This design minimizes blockages, ensures smooth feeding, and delivers high throughput rates for even the toughest materials.
These shredders are ideal for industries involved in plastic recycling, waste management, rubber processing, paper recycling, and RDF (refuse-derived fuel) production. Their robust design ensures optimal performance across multiple sectors.
Absolutely. Virtus Equipment offers customization options including different rotor widths, wear protection, control systems, and hydraulics. This allows the shredder to be tailored for specific applications and material types.
You can easily request a quote for the Heavy-Duty Industrial Shredders by submitting your requirements through the contact form or calling Virtus Equipment directly. Our experts will help you choose the ideal model and configuration to fit your recycling needs.
