Virtus Equipment’s Industrial Horizontal Shredders are heavy-duty single-shaft shredders designed for efficient and reliable size reduction of bulky materials. With a large feeding hopper, low-speed/high-torque operation, and robust construction, these horizontal shredders provide consistent performance for industrial recycling and waste processing applications requiring continuous shredding and dependable throughput.
Virtus Equipment’s Industrial Horizontal Shredders offer a powerful combination of robustness, low-speed efficiency, and high capacity for shredding heavy and bulky materials. Their large feeding hopper, welded construction, and advanced rotor/knife system make them ideal for industrial recycling operations that need reliable shredding performance with minimal downtime and consistent output.
Virtus Equipment supplies Industrial Horizontal Shredders throughout the United States, backed by technical consultation, configuration support, installation assistance, and aftermarket service. Our nationwide support network ensures responsive maintenance, optimized performance, and long-term reliability for industrial recycling facilities and waste processing operations across the country.

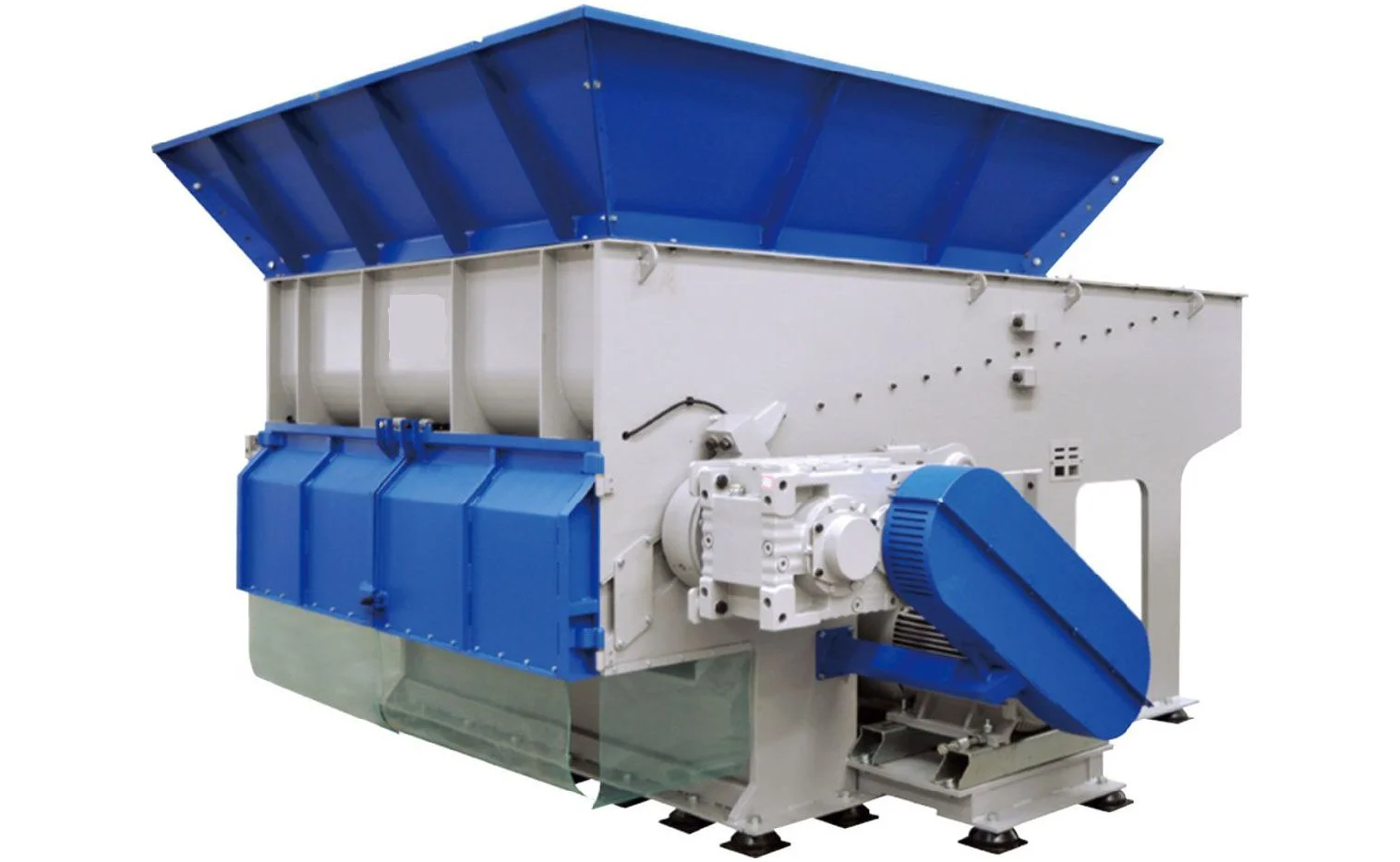

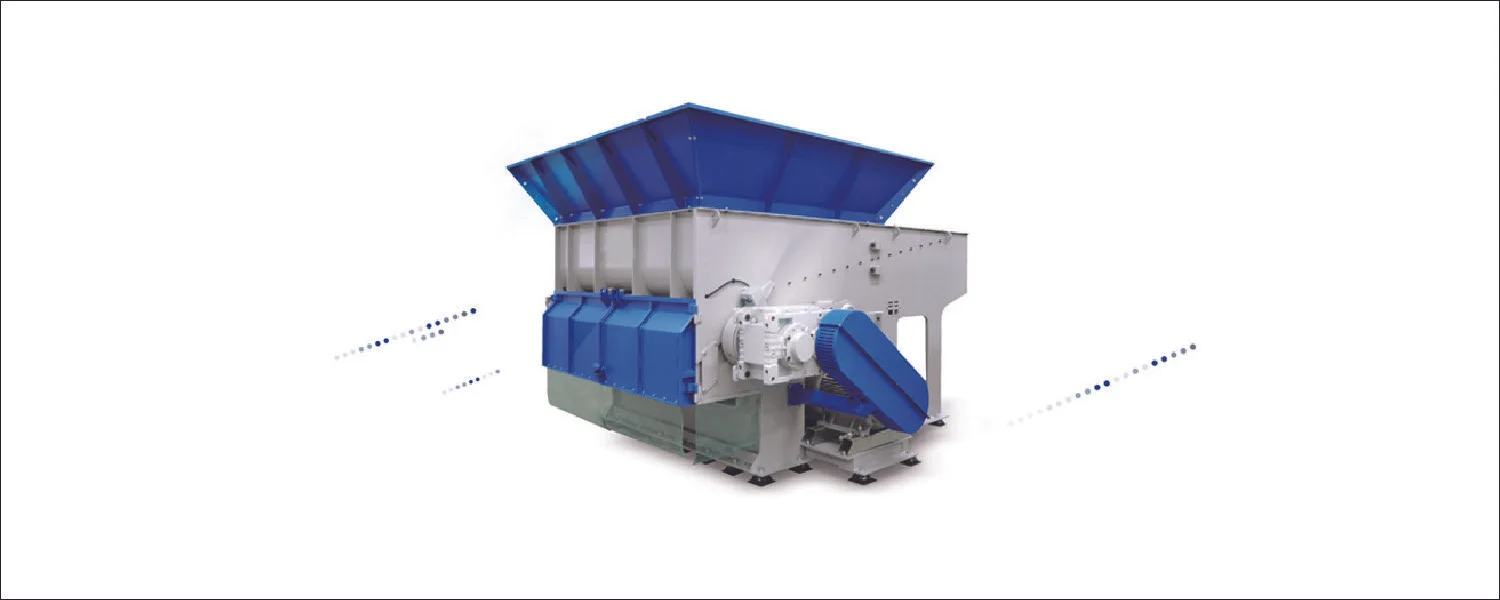

The Virtus Equipment VHS-series of industrial horizontal shredders are a single-shaft shredder featuring an angled hydraulic ram suitable for a wide range of material shapes and sizes. It is equipped with a 600 mm diameter E-type rotor and knife holder fixing system and is available in widths from 1500 mm to 2600 mm. The final material size is determined by the screen which can easily be changed based on requirements. The VHS- series shredder can be tailored to fit your recycling requirements, this includes different drive powers, knife configurations as well as discharge options.
The VHS-series shredders provide an economical solution for recycling of plastics, wood, paper, and general waste streams. The industrial horizontal shredders have been engineered for strength and reliability in daily operation. These shredders can easily be integrated into complete lines with other Virtus products and accessories such as conveyors, granulators, etc.
Virtus Industrial Horizontal Shredders are commonly used in:

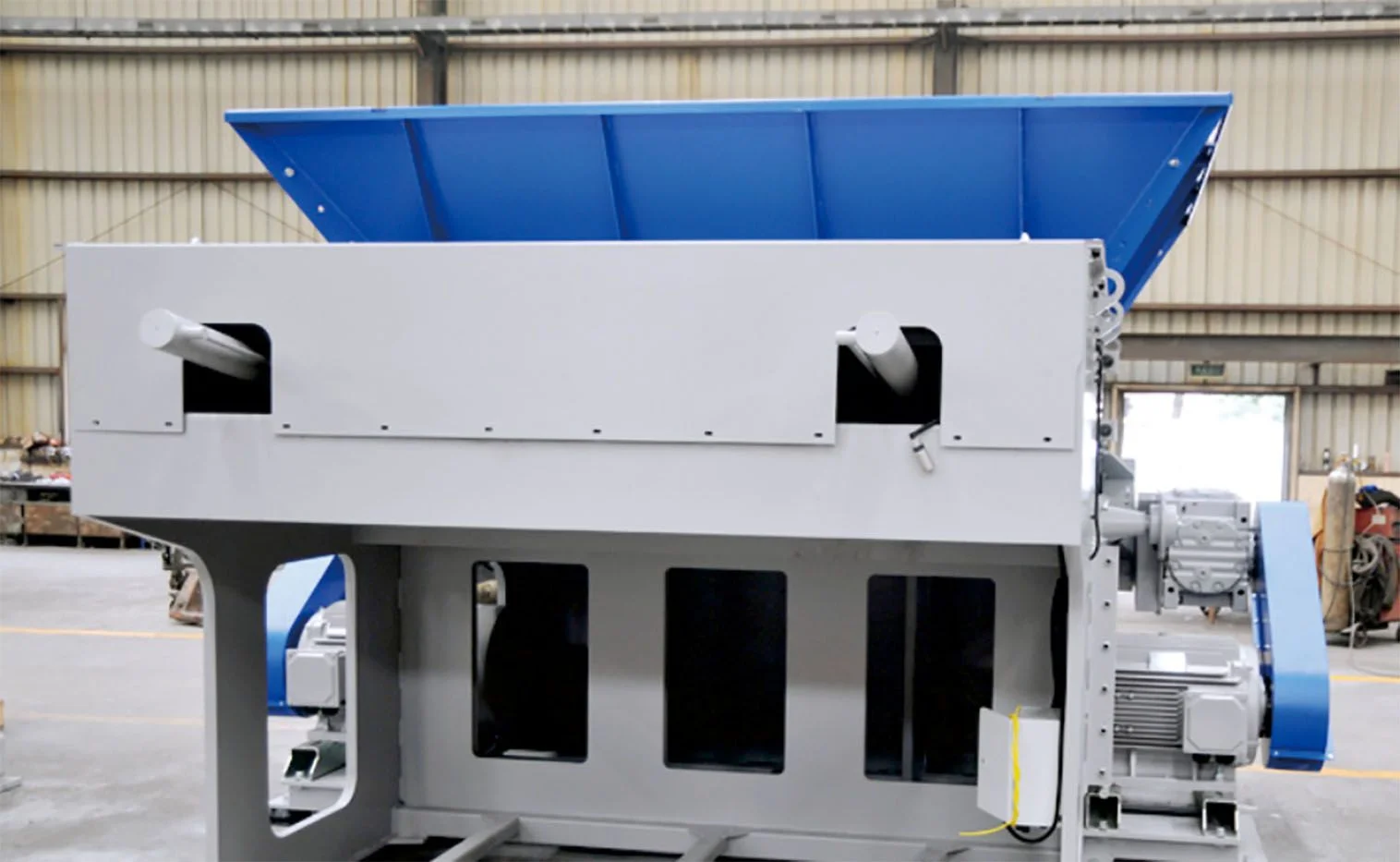

Angled Hydraulic Pusher

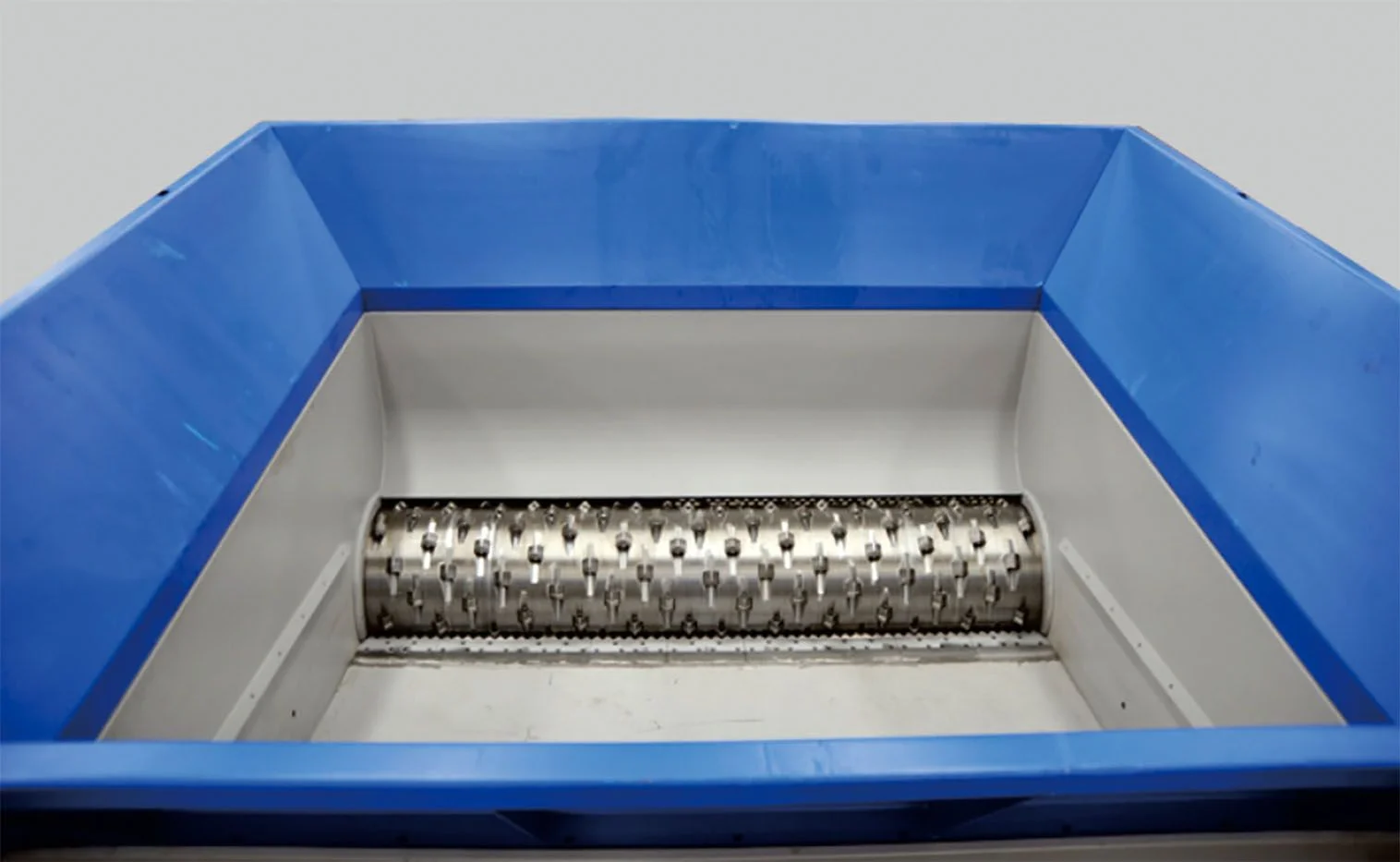

Large Feeding Hopper

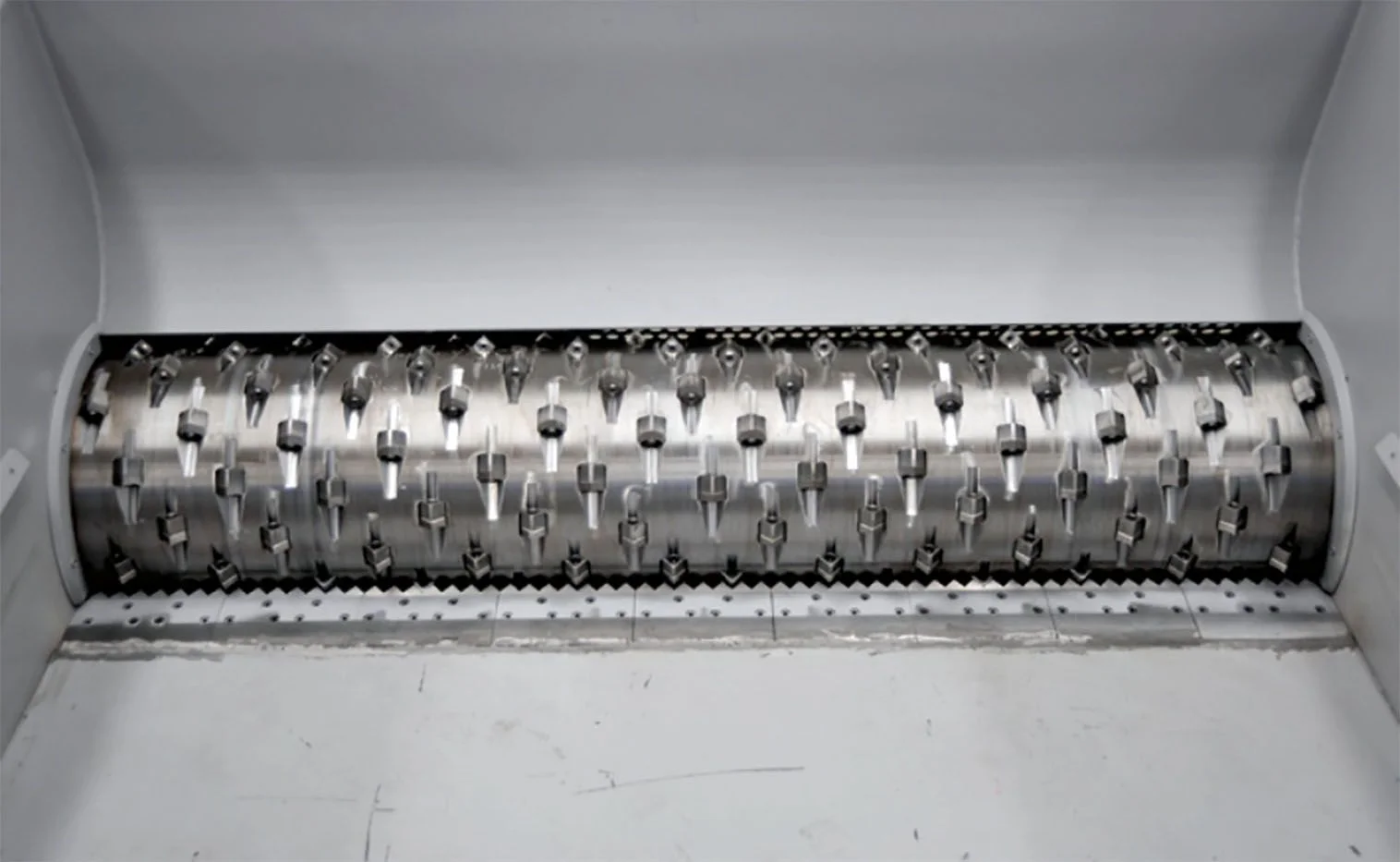

E-type Rotor
| VHS Series | VHS1500 | VHS2000 | VHS2600 | |
|---|---|---|---|---|
| Specifications | ||||
| Material Throughput | lbs/hr | |||
| Rotor Diameter | mm | 600 | 600 | 600 |
| Rotor Width | mm | 1400 | 1960 | 2520 |
| Rotor Speed | rpm | 104 | 104 | 104 |
| Drive Capacity | kW | 90 or 110 | 110 or 2 x 75 | 2 x 90 or 2 x 110 |
| Rotor Knives (34 x 34) | pcs | 68 or 102 | 96 or 144 | 124 or 186 |
| Rotor Knives (50 x 50) | pcs | 35 or 57 | 54 or 81 | 70 or 105 |
| Stator blades | pcs | 5 | 7 | 9 |
| Ram Feeder Drive | kW | 5.5 | 5.5 | 5.5 |
| Cutting chamber volume | m3 | 1.4 | 2 | 2.6 |
| Screen Size | mm | >40 | >40 | >40 |
| Effective Working Area | mm x mm | 1320 x 1340 | 1880 x 1500 | 2440 x 1500 |
| Weight (approx.) | kg | 12000 | 14000 | 16000 |
| Dimensions | ||||
| A | mm | 4420 | 4650 | 4650 |
| B | mm | 455 | 455 | 595 |
| C | mm | 2700 | 2740 | 2740 |
| D | mm | 1855 | 2050 | 2040 |
| E | mm | 1420 | 1980 | 2540 |
| F | mm | 2830 | 3890 | 4425 |
Industrial Horizontal Shredders for Plastics are designed to efficiently process plastic waste, bulky materials, and general waste streams. They reduce the size of plastic components for easier handling, recycling, and reprocessing in industrial applications.
These shredders can handle a wide range of materials including plastics, wood, paper, and other general waste. They’re ideal for recycling post-industrial plastic waste and can be integrated into complete processing lines with conveyors and granulators.
The Virtus VHS-Series features a large feeding hopper, robust welded-steel construction, and a low-speed, high-torque design. Its angled hydraulic ram and advanced rotor/knife mounting system ensure efficient, consistent shredding for various plastic waste types.
Visit the Industrial Horizontal Shredders product page to request a quote or speak with a technical expert. Virtus Equipment’s team can provide setup advice, integration options, and detailed product specifications.
